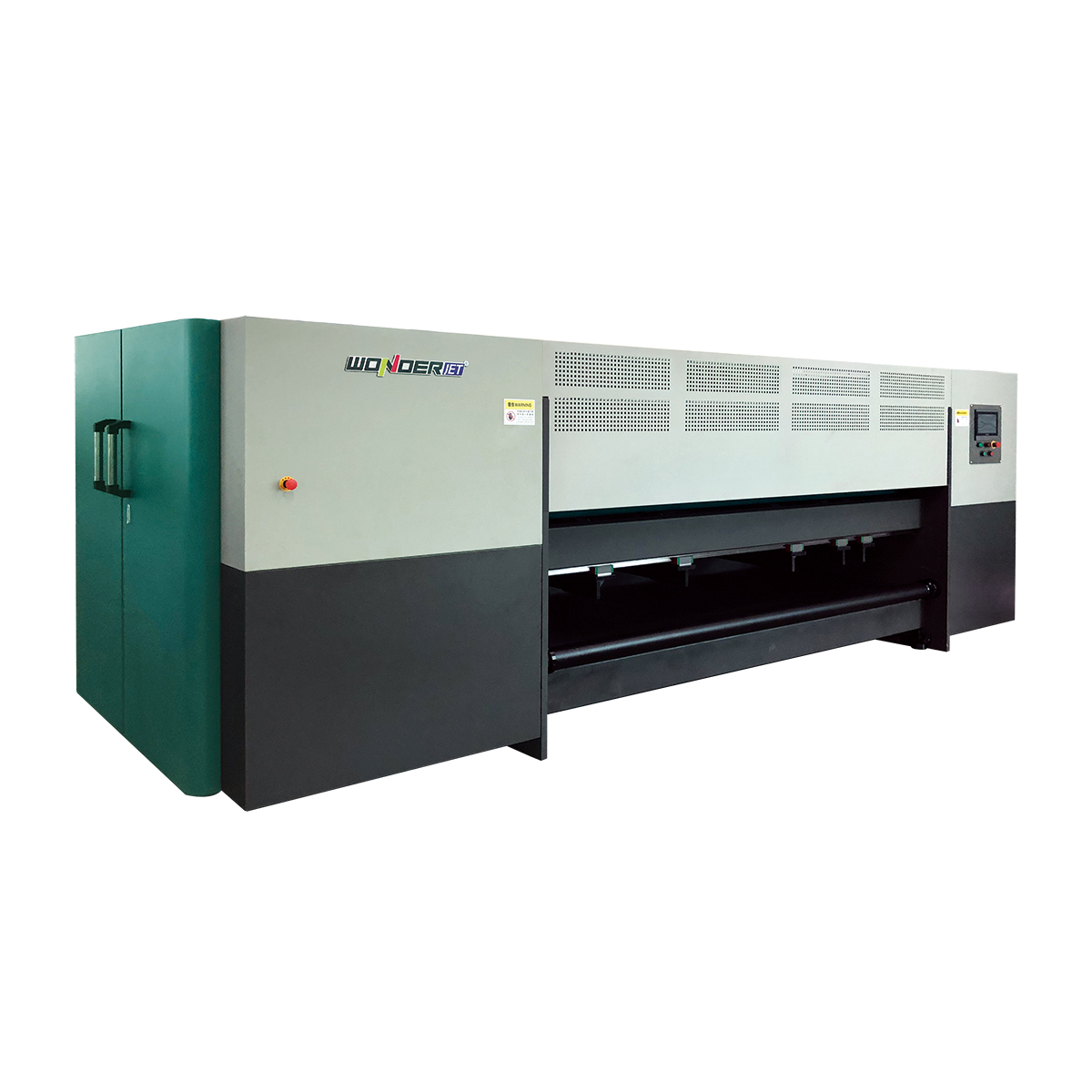

| Article NO. | WDSF250/310 |
| Knife adjustment | Adjust knives aromatically, positional accuracy within 0. 5mm |
| Height adjustment | Auto-adjust the height of roller,furniture carton slotting is available, the height is not limited |
| Feeding mode | Automatic feeding |
| Feeding plate structure | Use vacuum suction with front edge plate feeding structure |
| Slotting speed | Max 120 sheets/min, linear speed 1.6 m/s |
| Slotting Depth | 315mm（315-420mm canbe customized) |
| Slotting indentation | Combine slotting and indentation into one machine |
| Easy operation | Touch screen input, saving time and sheets, reset to zero automatically |
| Power dissipation | Lower power dissipation, the average only 2KW,energy conservation and environment protection |
| Transmission material | Transmission gear use 40Cr alloy steel, excellent abrasion resistance |
| Cardboard Min. Size | 665mm*400mm |
| Cardboard Max. Size | Automatic feeding: Below 2500mm*1350mm |
| Rated Power | About 16 kw, AC380±10%, 50 ~ 60 Hz |
| Machine Size | 5780mm（L） * 1800mm(W) * 1850mm (H) |
| Weight: | About 7500kgs |
©Above information just for reference, Shenzhen Wonder Printing System Co., ltd keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
